APPLICATION:

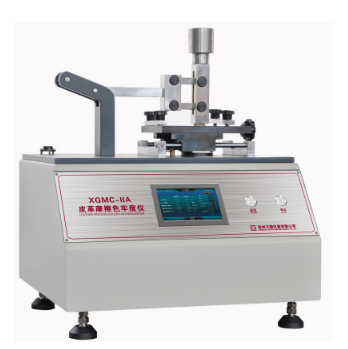

It is used to test the color fastness and abrasion resistance of leather and shoe lining. The instrument uses a large color touch screen display operation, with metal panels and metal buttons.
STANDARD: QB/T2537
TECHNICAL PARAMETERS:
1. Reciprocating stroke: 38mm
2. Specimen clamp spacing: 80mm
2. Workbench stretching device: pre-tensioning, maximum scale: 30mm
3. Motion track: linear friction
4. Load: 500±25g plus 500±10g weight
5. Friction speed: 40±2r/min
6. Friction head size: square: 15 × 15mm
7. Number of frictions: 1 ~ 9999
8. Operation mode: electric
9. Friction material: felt
10. Power: AC220V, 50Hz, 60W
11. Dimensions: 410×400×440mm (L×W×H)
12. Mass: 50Kg
SUPPLY LIST:
1. 1 host;
2. 1 weight (500 g);
3. 5 pieces of felt;
4. 1 product certificate;
5. 1 Product instructions.
