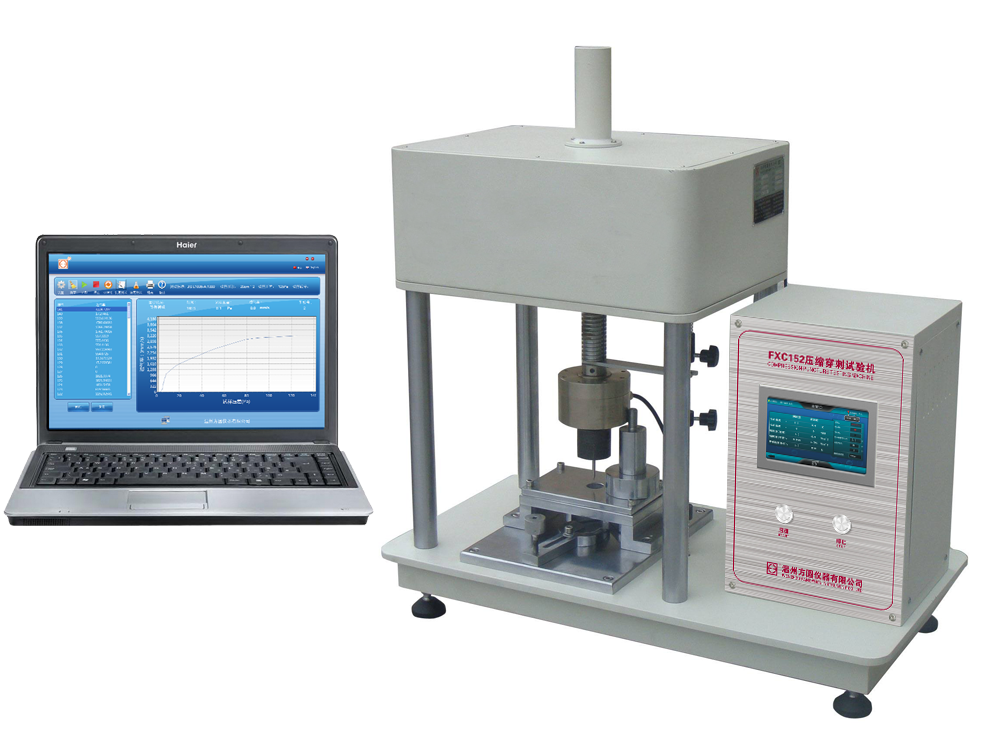

FXC152 Compression puncture tester

INTRODUCTION

APPLICATION:

To measure the compression resistance of the toe cap and the puncture resistance of the steel middle plate, so as to prevent the operator from being accidentally injured when wearing in the workplace due to insufficient safety performance of shoes.

STANDARDS:

ISO20344, GB/T20991-2007, etc.

Instrument characteristics:

1. Large screen color touch screen display, user-friendly interface design and easy operation.

2. The panel is made of special aluminum and has metal keys, which are sensitive to operation and not easy to damage.

3. The core control components are Italy's 32 - bit multi-functional motherboard.

4. The core transmission mechanism adopts imported precision guide rails.

5. The instrument includes Chinese and English interfaces to facilitate the inspection of foreign customers.

6. The surface of the instrument is treated by electrostatic spraying process.

Technical parameters:

1. Sensor capacity: 20kn

2. Strength analysis: 1 / 20000

3. Accuracy: ±1 %

4. Compression speed: 5 2 mm / min ( 0 ~ 200 mm / min stepless speed regulation )

5. Motor: AC inverter motor, inverter control

6. Test fixture: one set of compression fixture and one set of puncture fixture respectively
