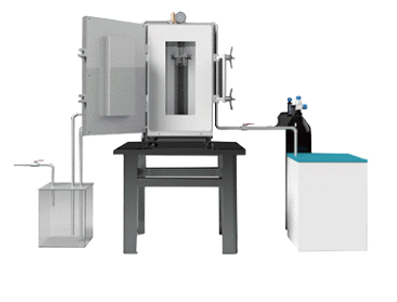

FY1601 High Temperature Acid and Alkali Resistance Test System

INTRODUCTION

Application:

Suitable for high temperature oxidation and hydrolysis performance test of filter materials.

Instrument characteristics:

1. The whole machine shell is made of 304 stainless steel.

2. The test bin is made of 316 high quality stainless steel welded seamlessly to facilitate cleaning.

3. The test chamber is designed to withstand pressure and can withstand up to 100kpa atmospheric pressure.

4. Reliable sealing performance;

5. Frame reinforcement design shall be adopted inside the box body.

6. Seamless welding of 316 stainless steel is used for connecting pipe heads.

7. The heating element is made of high-quality stainless steel heating tube, which is stable and reliable and will not be damaged after long-term use.

8. The temperature resistance of the box body can reach 300 degrees;

9. Long-term use, still can guarantee the air tightness;

10. The counting times using imported Ottonix CT6S-1P4 header can be freely set;

11. The panel is made of imported special aluminum and has metal keys, which are sensitive to operation and not easy to damage.

Technical parameters:

1. 300 ℃ temperature resistance

2. A single test time 24h, 48h, 96h, or several weeks

3. The test temperature below 260 degrees

4. Operating power supply: AC 220V, 50Hz

5. Overall size: 1500×700×1400mm(L×W×H ) ( excluding gas cylinders and steam boilers )

6. Overall weight: 150kg ( excluding gas cylinders and steam boilers )
